Aluminum Panels vs. Battens vs. Soffit Systems

Panels, battens or fins, and soffit or ceiling systems are not three interchangeable looks. They solve different surface and design problems within the wider range of exterior aluminum cladding systems. This framework helps architects, builders, and owners assign the right family to walls, screening zones, and overhead planes before profile-level decisions begin.

Start With Surface and Function

Label each design zone by orientation and required function: vertical weather-exposed wall, sheltered wall, dimensional accent, visual screen, soffit, canopy underside, or interior ceiling. Then state the primary goal in plain language. A wall may need a continuous visual field; an entry may need a directional ceiling; a service zone may need filtered views. This prevents one attractive profile from being stretched across conditions it was not selected to address.

Panels and Battens Describe Formats; Soffit Describes an Application

Which Formats Can Be Used Overhead?

A panel is a surface format; a batten is a linear format; a soffit is an underside location. These categories overlap rather than forming three mutually exclusive products. Panels or battens can form a soffit only when the selected system is documented as suitable for that overhead use. Confirm gravity support, uplift where applicable, end restraint, service access and the approved attachment orientation. A vertical wall detail cannot simply be rotated onto a ceiling. Open spacing alone proves neither adequate ventilation nor a defined solar-control performance.

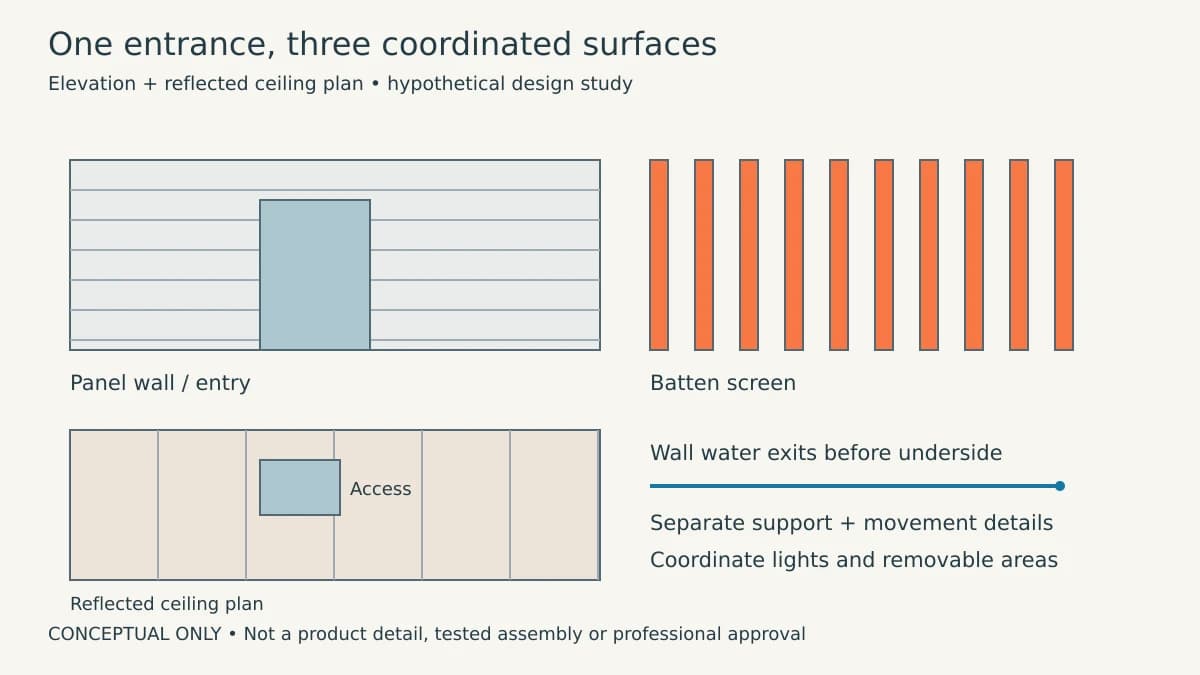

Worked Example: Coordinating a Panel Wall, Batten Screen and Entry Soffit

Set the Shared Datum and Module

Hypothetical coordination example: a small commercial entrance has a continuous panel wall, a freestanding batten screen beside the doors and a canopy underside. Start with the door-head datum and a common drawing grid, then independently resolve the actual panel coverage, batten centers and soffit joint positions. A shared grid need not mean identical face widths. Compare an elevation with a reflected ceiling plan to reveal lines that align in one view but miss in another. Confirm available lengths and support locations before committing to the pattern.

Resolve the Wall-to-Soffit Transition

Draw the wall drainage outlet, canopy flashing, underside closure and separate attachment supports together. Decide where water leaves the wall without being directed into the overhead cavity. Identify any ventilation openings, screens and required cavity barriers; the enclosure designer must resolve them without bypassing fire-safety requirements. Keep the wall and overhead movement allowances independently legible rather than relying on a tight visual corner to conceal an unresolved interface.

Locate lights, detectors, access hatches and services in the reflected ceiling plan. Confirm their independent support where required and identify removable areas before closing the underside. Demonstrate the removal sequence at the mockup: a damaged wall piece, one batten and an overhead service panel may require different access and disassembly. Avoid making a light fitting the only way into a cavity that needs routine inspection.

Face Width, Projection, Spacing and Viewing Angle

Batten centers alone do not define what the entrance screen looks like. Face width controls apparent density, projection changes shadows, and viewing angle changes the visible gap. Test the screen from the approach, through the entrance and from inside. If privacy, shade or airflow is a performance requirement, obtain a project-specific evaluation; do not infer a shading coefficient or ventilation rate from a rendering. Record material interfaces, corrosion isolation, access for cleaning and who approves the final support design.

Decision Table: Which Family Deserves a Closer Look?

Use the table to create a short list. Final suitability depends on project details, support, exposure, engineering, and applicable requirements.

Choose Panels for a Continuous Wall Field

Panels are the logical starting point when the elevation needs a coherent field, repeatable coursing, and controlled shadow lines around openings and corners. Barcode's aluminum wall panel profiles and finishes offer a product-level reference once this design role is established. The module should be tested against floor lines, window heads and sills, material transitions, and narrow return conditions. Limitations include the need to resolve cut conditions and substrate tolerances across broad surfaces; a clean rendering does not eliminate those coordination points.

Choose Battens or Fins for Depth and Screening

Battens and fins suit zones where projection, repetition, shadow, and changing oblique views are the design engine; Barcode's aluminum batten profiles illustrate this dimensional family. They can mark an entry, layer a façade, wrap a feature, or filter views to a backing surface. Spacing, projection, orientation, support locations, end caps, cleaning reach, and the color behind the gaps all affect the result. Their limitation is functional ambiguity: a visual screen should not be assumed to serve as a guard, security barrier, sun-control device, privacy barrier, or weather enclosure unless the project team designs and verifies that role.

Choose a Soffit or Ceiling System for Overhead Planes

Soffits, covered entries, canopy undersides, carports, and ceilings place the finish overhead, where attachment, perimeter restraint, access, and integrated services become prominent. Barcode's soffit and ceiling system is a commercial option for these horizontal surfaces. Build the reflected ceiling plan alongside the elevation. Locate lighting, sprinklers, speakers, cameras, diffusers, hatches, drains above, and movement joints before locking the module. The principal limitation is congestion: even a simple ceiling expression can be disrupted when service zones and access needs arrive late.

Plan Continuity Without Forcing Sameness

Continuity can come from aligned datums, related module widths, consistent joint color, a shared finish family, or deliberate changes in direction. It does not require the same profile everywhere. A panel wall can establish a baseline, battens can intensify rhythm at an entry, and an overhead system can carry a related direction beneath a canopy. Decide where lines align, turn, stop, or intentionally break, and show those rules in both elevations and reflected ceiling plans. The open- and closed-joint strategies affect how those gaps and reveals read across the surfaces.

Coordinate Supports, Transitions, and Other Trades

Whole Building Design Guide frames the enclosure as interdependent systems rather than isolated products. Apply that principle at every interface. Structure and backup walls influence attachment zones; window and door detailing and flashings influence panel modules; signage and lighting influence batten spacing; overhead services influence ceiling layout. The design team should also resolve where water drains, where cavities terminate, where different metals meet, and how movement is accommodated. These are project conditions, not conclusions supplied by a family name.

• Overlay architectural grids with structure, openings, and service locations.
• Draw full-scale or enlarged transitions between the three families.
• Define which trade owns backing, flashings, closures, and penetrations.
• Reserve access to maintain concealed equipment and drainage paths.

Evaluate Finish, Light, and Visual Acceptance

The same nominal finish can read differently on a broad panel, a projecting fin, and an overhead profile because geometry and light change reflections and shadows. Grain direction and module orientation also affect continuity. The Metal Construction Association's visual-acceptance resource underscores that appearance criteria deserve explicit attention alongside structural and fire requirements. Use representative samples, define viewing conditions where appropriate, and review adjoining profile types together rather than approving each in isolation.

Build a Project-Specific System Map

Mark every façade and overhead zone on a drawing, assign its primary function, nominate a system family, and list unresolved interfaces. Then test the map against design intent, enclosure continuity, support, access, finish relationships, procurement boundaries, and budget. A mixed solution is often appropriate, but it adds transitions; a single-family solution reduces variety, but it may compromise a specialized surface. Selection is complete only when the team can explain why each family belongs where it is shown.
